在 Kubernetes 中部署 Prow

Prow | praʊ |

noun. the pointed front part of a ship; the bow. 船首.

了解 Prow 可以参考这篇知乎专栏：Kubernetes 原生 CI/CD 系统 Prow 简介。

本文重点参考了以下文章，并做了一些问题的修复：

我们并不一定需要使用 Bazel 来构建配置。笔者使用的 Kubernetes 版本为 2020 年发布的 1.19.3。一切的前提是拥有一个 Kubernetes 集群，最好在里面也部署一个 Ingress Controller 用来暴露我们的 WebHook 以及 Prow Deck 前端 Dashboard 服务。

在 K8s 集群中部署 Prow 的具体步骤如下：

首先注册一个 GitHub 账号专门用于作为机器人账号，用此账号前往 GitHub Developer 页面创建一个 Token，权限参考上文，并邀请此账号作为 Collaborators 管理仓库。

随机生成 H-MAC 作为 WebHook 密码安全验证。

openssl rand -hex 20 > hmac

将他们保存在 /etc/github/oauth 和 /etc/webhook/hmac 文件下。路径不能错误，因为此处和下面的 Prow manifest 字段匹配。

纳入集群对象：

kubectl create secret generic hmac-token --from-file=hmac=/etc/webhook/hmac
kubectl create secret generic oauth-token --from-file=oauth=/etc/github/oauth

将以下 Prow 的 manifest 做简单修改，注意 Ingress 的域名，namespace 为 default：

apiVersion: v1
kind: ConfigMap
metadata:
namespace: default
name: plugins
data:
plugins.yaml: ""
---
apiVersion: v1
kind: ConfigMap
metadata:
namespace: default
name: config
data:
config.yaml: |
prowjob_namespace: default
pod_namespace: test-pods
periodics:
- interval: 10m
agent: kubernetes
name: echo-test
spec:
containers:
- image: alpine
command: ["/bin/date"]
---
apiVersion: apiextensions.k8s.io/v1beta1
kind: CustomResourceDefinition
metadata:
name: prowjobs.prow.k8s.io
spec:
group: prow.k8s.io
version: v1
names:
kind: ProwJob
singular: prowjob
plural: prowjobs
scope: Namespaced
validation:
openAPIV3Schema:
properties:
spec:
properties:
max_concurrency:
type: integer
minimum: 0
type:
type: string
enum:
- "presubmit"
- "postsubmit"
- "periodic"
- "batch"
status:
properties:
state:
type: string
enum:
- "triggered"
- "pending"
- "success"
- "failure"
- "aborted"
- "error"
anyOf:
- not:
properties:
state:
type: string
enum:
- "success"
- "failure"
- "error"
- "aborted"
- required:
- completionTime
additionalPrinterColumns:
- name: Job
type: string
description: The name of the job being run.
JSONPath: .spec.job
- name: BuildId
type: string
description: The ID of the job being run.
JSONPath: .status.build_id
- name: Type
type: string
description: The type of job being run.
JSONPath: .spec.type
- name: Org
type: string
description: The org for which the job is running.
JSONPath: .spec.refs.org
- name: Repo
type: string
description: The repo for which the job is running.
JSONPath: .spec.refs.repo
- name: Pulls
type: string
description: The pulls for which the job is running.
JSONPath: ".spec.refs.pulls[*].number"
- name: StartTime
type: date
description: When the job started running.
JSONPath: .status.startTime
- name: CompletionTime
type: date
description: When the job finished running.
JSONPath: .status.completionTime
- name: State
description: The state of the job.
type: string
JSONPath: .status.state
---
apiVersion: apps/v1
kind: Deployment
metadata:
namespace: default
name: hook
labels:
app: hook
spec:
replicas: 2
strategy:
type: RollingUpdate
rollingUpdate:
maxSurge: 1
maxUnavailable: 1
selector:
matchLabels:
app: hook
template:
metadata:
labels:
app: hook
spec:
serviceAccountName: "hook"
terminationGracePeriodSeconds: 180
containers:
- name: hook
image: magicsong/hook:v20190711-664ef040d
args:
- --dry-run=false
- --config-path=/etc/config/config.yaml
ports:
- name: http
containerPort: 8888
volumeMounts:
- name: hmac
mountPath: /etc/webhook
readOnly: true
- name: oauth
mountPath: /etc/github
readOnly: true
- name: config
mountPath: /etc/config
readOnly: true
- name: plugins
mountPath: /etc/plugins
readOnly: true
# livenessProbe:
# httpGet:
# path: /healthz
# port: 8081
# initialDelaySeconds: 3
# periodSeconds: 3
# readinessProbe:
# httpGet:
# path: /healthz/ready
# port: 8081
# initialDelaySeconds: 10
# periodSeconds: 3
# timeoutSeconds: 600
volumes:
- name: hmac
secret:
secretName: hmac-token
- name: oauth
secret:
secretName: oauth-token
- name: config
configMap:
name: config
- name: plugins
configMap:
name: plugins
---
apiVersion: v1
kind: Service
metadata:
namespace: default
name: hook
spec:
selector:
app: hook
ports:
- port: 8888
type: NodePort
---
apiVersion: apps/v1
kind: Deployment
metadata:
namespace: default
name: plank
labels:
app: plank
spec:
selector:
matchLabels:
app: plank
replicas: 1 # Do not scale up.
strategy:
type: Recreate
template:
metadata:
labels:
app: plank
spec:
serviceAccountName: "plank"
containers:
- name: plank
image: magicsong/plank:v20190711-664ef040d
args:
- --dry-run=false
- --config-path=/etc/config/config.yaml
volumeMounts:
- name: oauth
mountPath: /etc/github
readOnly: true
- name: config
mountPath: /etc/config
readOnly: true
volumes:
- name: oauth
secret:
secretName: oauth-token
- name: config
configMap:
name: config
---
apiVersion: apps/v1
kind: Deployment
metadata:
namespace: default
name: sinker
labels:
app: sinker
spec:
selector:
matchLabels:
app: sinker
replicas: 1
template:
metadata:
labels:
app: sinker
spec:
serviceAccountName: "sinker"
containers:
- name: sinker
image: magicsong/sinker:v20190711-664ef040d
args:
- --config-path=/etc/config/config.yaml
volumeMounts:
- name: config
mountPath: /etc/config
readOnly: true
volumes:
- name: config
configMap:
name: config
---
apiVersion: apps/v1
kind: Deployment
metadata:
namespace: default
name: deck
labels:
app: deck
spec:
replicas: 2
strategy:
type: RollingUpdate
rollingUpdate:
maxSurge: 1
maxUnavailable: 1
selector:
matchLabels:
app: deck
template:
metadata:
labels:
app: deck
spec:
serviceAccountName: "deck"
terminationGracePeriodSeconds: 30
containers:
- name: deck
image: magicsong/deck:v20190711-664ef040d
args:
- --config-path=/etc/config/config.yaml
- --tide-url=http://tide/
- --hook-url=http://hook:8888/plugin-help
ports:
- name: http
containerPort: 8080
volumeMounts:
- name: config
mountPath: /etc/config
readOnly: true
livenessProbe:
httpGet:
path: /healthz
port: 8081
initialDelaySeconds: 3
periodSeconds: 3
readinessProbe:
httpGet:
path: /healthz/ready
port: 8081
initialDelaySeconds: 10
periodSeconds: 3
timeoutSeconds: 600
volumes:
- name: config
configMap:
name: config
---
apiVersion: v1
kind: Service
metadata:
namespace: default
name: deck
spec:
selector:
app: deck
ports:
- port: 80
targetPort: 8080
type: NodePort
---
apiVersion: apps/v1
kind: Deployment
metadata:
namespace: default
name: horologium
labels:
app: horologium
spec:
replicas: 1 # Do not scale up.
strategy:
type: Recreate
selector:
matchLabels:
app: horologium
template:
metadata:
labels:
app: horologium
spec:
serviceAccountName: "horologium"
terminationGracePeriodSeconds: 30
containers:
- name: horologium
image: magicsong/horologium:v20190711-664ef040d
args:
- --config-path=/etc/config/config.yaml
volumeMounts:
- name: config
mountPath: /etc/config
readOnly: true
volumes:
- name: config
configMap:
name: config
---
apiVersion: apps/v1
kind: Deployment
metadata:
namespace: default
name: tide
labels:
app: tide
spec:
replicas: 1 # Do not scale up.
strategy:
type: Recreate
selector:
matchLabels:
app: tide
template:
metadata:
labels:
app: tide
spec:
serviceAccountName: "tide"
containers:
- name: tide
image: magicsong/tide:v20190711-664ef040d
args:
- --dry-run=false
- --config-path=/etc/config/config.yaml
ports:
- name: http
containerPort: 8888
volumeMounts:
- name: oauth
mountPath: /etc/github
readOnly: true
- name: config
mountPath: /etc/config
readOnly: true
volumes:
- name: oauth
secret:
secretName: oauth-token
- name: config
configMap:
name: config
---
apiVersion: v1
kind: Service
metadata:
namespace: default
name: tide
spec:
selector:
app: tide
ports:
- port: 80
targetPort: 8888
type: NodePort
---
apiVersion: extensions/v1beta1
kind: Ingress
metadata:
namespace: default
name: ing
annotations:
nginx.ingress.kubernetes.io/ssl-redirect: "false"
spec:
rules:
- host: prow.your-domain.com # 这里换成你的域名
http:
paths:
- path: / # Correct for GKE, need / on many other distros
backend:
serviceName: deck
servicePort: 80
- path: /hook
backend:
serviceName: hook
servicePort: 8888
---
apiVersion: apps/v1
kind: Deployment
metadata:
name: statusreconciler
namespace: default
labels:
app: statusreconciler
spec:
replicas: 1
selector:
matchLabels:
app: statusreconciler
template:
metadata:
labels:
app: statusreconciler
spec:
serviceAccountName: statusreconciler
terminationGracePeriodSeconds: 180
containers:
- name: statusreconciler
image: magicsong/status-reconciler:v20190711-664ef040d
args:
- --dry-run=false
- --continue-on-error=true
- --plugin-config=/etc/plugins/plugins.yaml
- --config-path=/etc/config/config.yaml
- --github-token-path=/etc/github/oauth
volumeMounts:
- name: oauth
mountPath: /etc/github
readOnly: true
- name: config
mountPath: /etc/config
readOnly: true
- name: plugins
mountPath: /etc/plugins
readOnly: true
volumes:
- name: oauth
secret:
secretName: oauth-token
- name: config
configMap:
name: config
- name: plugins
configMap:
name: plugins
---
apiVersion: v1
kind: Namespace
metadata:
name: test-pods
---
kind: ServiceAccount
apiVersion: v1
metadata:
namespace: default
name: "deck"
---
kind: RoleBinding
apiVersion: rbac.authorization.k8s.io/v1beta1
metadata:
namespace: default
name: "deck"
roleRef:
apiGroup: rbac.authorization.k8s.io
kind: Role
name: "deck"
subjects:
- kind: ServiceAccount
name: "deck"
---
kind: RoleBinding
apiVersion: rbac.authorization.k8s.io/v1beta1
metadata:
namespace: test-pods
name: "deck"
roleRef:
apiGroup: rbac.authorization.k8s.io
kind: Role
name: "deck"
subjects:
- kind: ServiceAccount
name: "deck"
namespace: default
---
kind: Role
apiVersion: rbac.authorization.k8s.io/v1beta1
metadata:
namespace: default
name: "deck"
rules:
- apiGroups:
- "prow.k8s.io"
resources:
- prowjobs
verbs:
- get
- list
# Required when deck runs with `--rerun-creates-job=true`
# **Warning:** Only use this for non-public deck instances, this allows
# anyone with access to your Deck instance to create new Prowjobs
# - create
---
kind: Role
apiVersion: rbac.authorization.k8s.io/v1beta1
metadata:
namespace: test-pods
name: "deck"
rules:
- apiGroups:
- ""
resources:
- pods/log
verbs:
- get
---
kind: ServiceAccount
apiVersion: v1
metadata:
namespace: default
name: "horologium"
---
kind: Role
apiVersion: rbac.authorization.k8s.io/v1beta1
metadata:
namespace: default
name: "horologium"
rules:
- apiGroups:
- "prow.k8s.io"
resources:
- prowjobs
verbs:
- create
- list
---
kind: RoleBinding
apiVersion: rbac.authorization.k8s.io/v1beta1
metadata:
namespace: default
name: "horologium"
roleRef:
apiGroup: rbac.authorization.k8s.io
kind: Role
name: "horologium"
subjects:
- kind: ServiceAccount
name: "horologium"
---
kind: ServiceAccount
apiVersion: v1
metadata:
namespace: default
name: "plank"
---
kind: Role
apiVersion: rbac.authorization.k8s.io/v1beta1
metadata:
namespace: default
name: "plank"
rules:
- apiGroups:
- "prow.k8s.io"
resources:
- prowjobs
verbs:
- get
- create
- list
- update
---
kind: Role
apiVersion: rbac.authorization.k8s.io/v1beta1
metadata:
namespace: test-pods
name: "plank"
rules:
- apiGroups:
- ""
resources:
- pods
verbs:
- create
- delete
- list
---
kind: RoleBinding
apiVersion: rbac.authorization.k8s.io/v1beta1
metadata:
namespace: default
name: "plank"
roleRef:
apiGroup: rbac.authorization.k8s.io
kind: Role
name: "plank"
subjects:
- kind: ServiceAccount
name: "plank"
---
kind: RoleBinding
apiVersion: rbac.authorization.k8s.io/v1beta1
metadata:
namespace: test-pods
name: "plank"
roleRef:
apiGroup: rbac.authorization.k8s.io
kind: Role
name: "plank"
subjects:
- kind: ServiceAccount
name: "plank"
namespace: default
---
kind: ServiceAccount
apiVersion: v1
metadata:
namespace: default
name: "sinker"
---
kind: Role
apiVersion: rbac.authorization.k8s.io/v1beta1
metadata:
namespace: default
name: "sinker"
rules:
- apiGroups:
- "prow.k8s.io"
resources:
- prowjobs
verbs:
- delete
- list
---
kind: Role
apiVersion: rbac.authorization.k8s.io/v1beta1
metadata:
namespace: test-pods
name: "sinker"
rules:
- apiGroups:
- ""
resources:
- pods
verbs:
- delete
- list
---
kind: RoleBinding
apiVersion: rbac.authorization.k8s.io/v1beta1
metadata:
namespace: default
name: "sinker"
roleRef:
apiGroup: rbac.authorization.k8s.io
kind: Role
name: "sinker"
subjects:
- kind: ServiceAccount
name: "sinker"
---
kind: RoleBinding
apiVersion: rbac.authorization.k8s.io/v1beta1
metadata:
namespace: test-pods
name: "sinker"
roleRef:
apiGroup: rbac.authorization.k8s.io
kind: Role
name: "sinker"
subjects:
- kind: ServiceAccount
name: "sinker"
namespace: default
---
apiVersion: v1
kind: ServiceAccount
metadata:
namespace: default
name: "hook"
---
kind: Role
apiVersion: rbac.authorization.k8s.io/v1beta1
metadata:
namespace: default
name: "hook"
rules:
- apiGroups:
- "prow.k8s.io"
resources:
- prowjobs
verbs:
- create
- get
- apiGroups:
- ""
resources:
- configmaps
verbs:
- create
- get
- update
---
kind: RoleBinding
apiVersion: rbac.authorization.k8s.io/v1beta1
metadata:
namespace: default
name: "hook"
roleRef:
apiGroup: rbac.authorization.k8s.io
kind: Role
name: "hook"
subjects:
- kind: ServiceAccount
name: "hook"
---
apiVersion: v1
kind: ServiceAccount
metadata:
namespace: default
name: "tide"
---
kind: Role
apiVersion: rbac.authorization.k8s.io/v1beta1
metadata:
namespace: default
name: "tide"
rules:
- apiGroups:
- "prow.k8s.io"
resources:
- prowjobs
verbs:
- create
- list
---
kind: RoleBinding
apiVersion: rbac.authorization.k8s.io/v1beta1
metadata:
namespace: default
name: "tide"
roleRef:
apiGroup: rbac.authorization.k8s.io
kind: Role
name: "tide"
subjects:
- kind: ServiceAccount
name: "tide"
---
apiVersion: v1
kind: ServiceAccount
metadata:
namespace: default
name: "statusreconciler"
---
kind: Role
apiVersion: rbac.authorization.k8s.io/v1beta1
metadata:
namespace: default
name: "statusreconciler"
rules:
- apiGroups:
- "prow.k8s.io"
resources:
- prowjobs
verbs:
- create
---
kind: RoleBinding
apiVersion: rbac.authorization.k8s.io/v1beta1
metadata:
namespace: default
name: "statusreconciler"
roleRef:
apiGroup: rbac.authorization.k8s.io
kind: Role
name: "statusreconciler"
subjects:
- kind: ServiceAccount
name: "statusreconciler"
view raw prow.yaml hosted with ❤ by GitHub

apply 上述 manifest。过程可能持续几分钟。上面用到的镜像都来自 DockerHub，国内可以直接访问。出现问题尝试打印 Pod 日志或者 describe，用好 Google 和 GitHub 能解决几乎 99% 的技术问题。

curl -L https://bit.ly/prow -o prow.yaml
vi prow.yaml
kubectl apply -f prow.yaml

Deck | dɛk |

noun. 甲板

等 Pod 全都 Running 后，项目就成功了一半！现在直接访问 Prow 的 Ingress 地址，可以看到 Prow 的 Deck 前端 Dashboard，类似于：https://prow.k8s.io/ 。

这时，可以在 GitHub 的项目设置里去添加 WebHook:

  1. Payload URL 是你的 Prow Ingress 域名后面直接加 /hook
  2. Content Type 选择 application/json
  3. Secrets 是上面随机生成的 HMAC
  4. 勾选 Send me everything

激活并保存。

接着在集群机器上创建一个 plugins.yaml 文件和 config.yaml 文件来配置 Prow。

插件的声明：

plugins:
  GitHub账号/项目名:
    - size
    - cat
    - dog
    - pony
    - shrug
    - yuks
    - label
    - trigger
    - approve
    - lgtm
    - welcome
    - help
    - assign
    - branchcleaner
    - lifecycle
    - wip
    - heart
    - milestone
    - milestonestatus
    - project
    - stage
    - skip
    - blockade

Tide 的配置：

prowjob_namespace: "default"
tide:
  merge_method:
    kubeflow/community: squash

  target_url: http://你的域名/tide
  queries:
    - repos:
        - GitHub账号/项目名
      labels:
        - lgtm
        - approved
      missingLabels:
        - do-not-merge
        - do-not-merge/hold
        - do-not-merge/work-in-progress
        - needs-ok-to-test
        - needs-rebase

  context_options:
    from-branch-protection: true
    skip-unknown-contexts: true
    orgs:
      org:
        required-contexts:
          - "check-required-for-all-repos"
        repos:
          repo:
            required-contexts:
              - "check-required-for-all-branches"
            branches:
              branch:
                from-branch-protection: false
                required-contexts:
                  - "required_test"
                optional-contexts:
                  - "optional_test"

应用更改：

kubectl create configmap plugins \
--from-file=plugins.yaml=/root/cluster/prow/plugins.yaml --dry-run -o yaml \
| kubectl replace configmap plugins -f -

kubectl create configmap config \
--from-file=config.yaml=/root/cluster/prow/config.yaml --dry-run -o yaml \
| kubectl replace configmap config -f -

可能需要两分钟生效。等一切就绪后，就可以创建 Pull Request 来测试了。效果可以参考 Kubernetes 的官方仓库或我的这个 node 命令行翻译项目。

使用 Prow

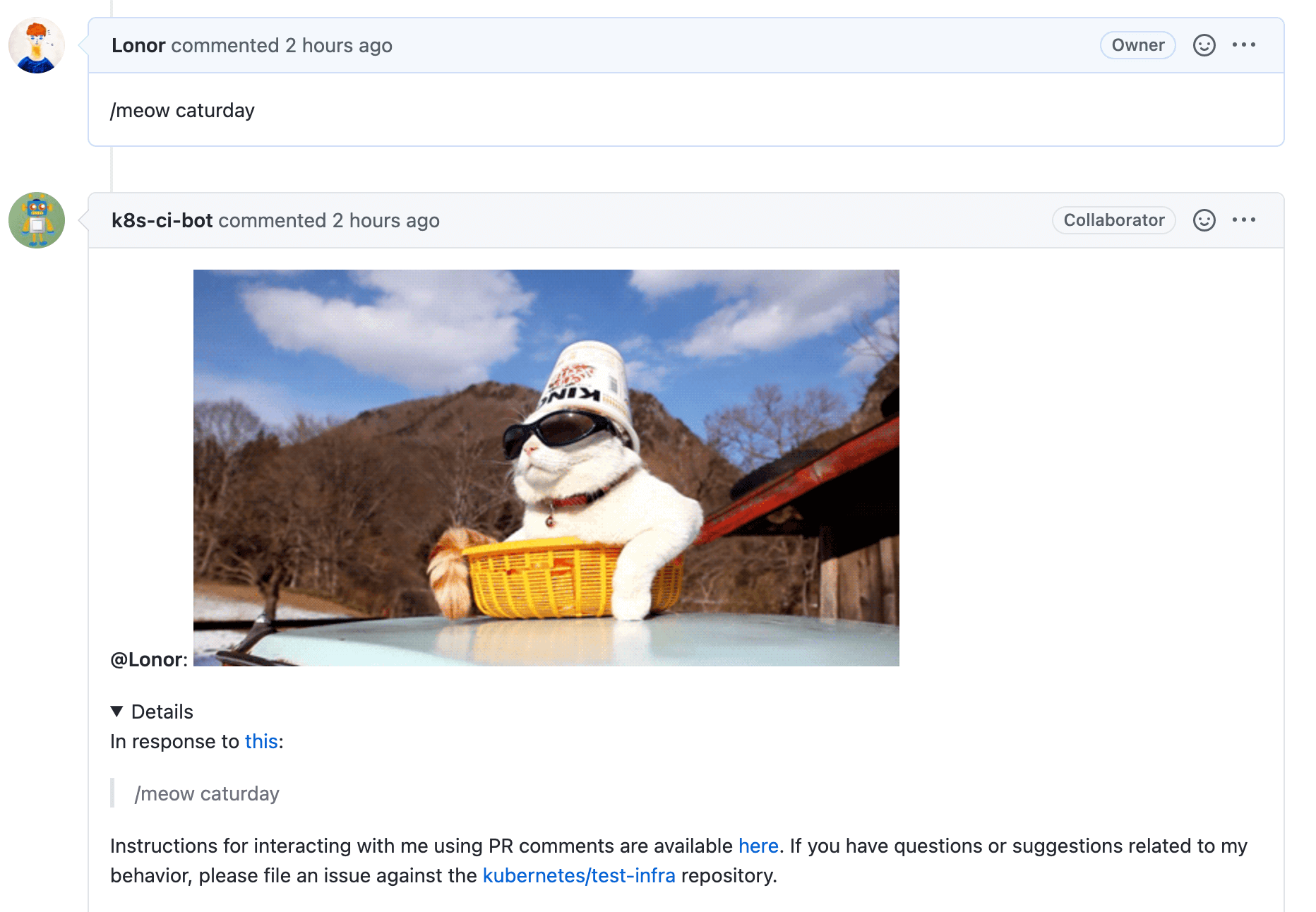

在 GitHub 的 Issue 或 Pull Request 页面下你可以用一个简单的 /meow 命令让机器人随机发送一张 🐱 的图片。无需任何刷新，GitHub 页面会自动地更新此页面（后来发现是基于 WebSocket）：

cat-in-issue
cat-in-issue

我们注意到， Kubernetes 维护人员会使用 /test 命令来让集群内的 Pod 执行测试并将结果告诉 GitHub，这就是 ProwJob 实现的了。

ProwJob 主要用于 PR 流程的 CI 测试，而国内网络原因无法使用 Google 的 GCS 服务，ProwJob 中 plank 依赖的 Pod Utilities，其中定义 GCS Bucket 用于存放构建产物、日志等内容，因此，我们似乎只能自己用自定义的镜像来跑临时 CI 任务了。注意定义 presubmit 字段下的 decorate 为 false，并利用好 Prow 提供的一些环境变量。

下面是我的一个简单的 Spring Boot 项目利用 Maven 镜像（配合阿里云的 Maven Repo）来做的 presubmits，同样在 config.yaml 中添加：

presubmits:
  la3rence/kubernetes-springboot-demo:
    - name: spring
      decorate: false
      always_run: false
      spec:
        containers:
          - image: lawrence2018/maven:3.6-jdk-8
            command: ["/bin/sh", "-c"]
            args:
              - |
                mkdir -p /${REPO_NAME}
                cd /${REPO_NAME}
                git init
                git remote add origin https://github.com/${REPO_OWNER}/${REPO_NAME}.git
                git fetch origin pull/${PULL_NUMBER}/head:pr-${PULL_NUMBER}
                git checkout pr-${PULL_NUMBER}
                mvn test
            resources:
              requests:
                cpu: "2000m"
                memory: "1536Mi"

重新配置 config 后并应用更改，在 Pull Request 下评论 /test all 或者 /test spring 来触发测试。参考此 PR。

/test 后面加 presubmits 的 name 名可触发指定的测试 Pod，all 则测试全部。测试若失败，可使用 /retest 来重新测试。


如果测试通过，可使用 /lgtm 触发 tide 让机器人合并代码（注意自己不能 /lgtm）。

自研 Issue/PR Bot

GitHub 大规模使用 WebSocket 来动态修改 Issue 或 PR 页面的 DOM，在视觉上非常令人享受。笔者后来也参考 Prow 用 Go 写了一个简单了 OpsBot 帮助自己的仓库做一些简单的 PR、Issue 的管理，现已开源，欢迎任何 Issue / PR！

KubernetesCIRobotDevOpsGitHub
